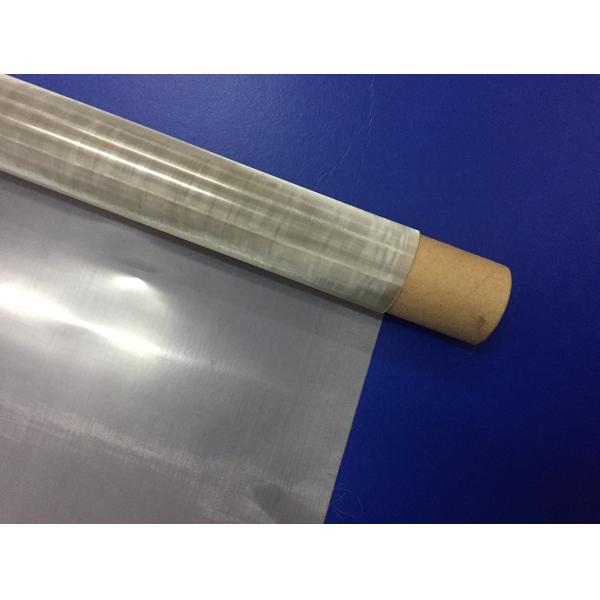

Metal Fiber Stainless Steel Wire Mesh Cloth Square Hole For Liquid Filter
stainless steel wire mesh filter mesh
ISO9001 ISO14001
302/304/304L/316/314/316L
can be cut into pieces or bag
Application
Filter mesh for gas and liquid serves well in filtering and deleting the particle mixture in foam, liquid and air, by way of distillation, absorbing, evaporating and filtering process, in petroleum, chemicals, metallurgy, machine, pharmaceuticals, automobile and environmental protection.
Specification
Material: 302/304/304L/310/316/314
Weaving: Plain weaving, twill weaving, microgroove-plain weaving, stain weaving, formatted with a lot of burs
Mesh Count: 160~500 mesh
Length: 1~500m
Width: 914~1600mm (some products can reach a width of 4000mm )
Can be cut into coils and pieces according to customers’ requirements
Stainless steel wire can be substituted by copper, galvanized iron wire polyamide fiber or F46 wire if need.
| Mesh | Wire Dia(mm) | Opening(mm) | Material(AISI) |
| 2mesh*2mesh | 1.8 | 10.9 | 304 or 316 |
| 3mesh*3mesh | 1.5 | 6.96 | 304 or 316 |
| 4mesh*4mesh | 1 | 5.35 | 304 or 316 |
| 7mesh*7mesh | 1 | 2.63 | 304 or 316 |
| 10mesh*10mesh | 0.6 | 1.94 | 304 or 316 |
| 12mesh*12mesh | 0.5 | 1.62 | 304 or 316 |
| 16mesh*16mesh | 0.4 | 1.19 | 304 or 316 |
| 16mesh*16mesh | 0.35 | 1.24 | 304 or 316 |
| 18mesh*18mesh | 0.35 | 1.06 | 304 or 316 |
| 20mesh*20mesh | 0.4 | 0.87 | 304 or 316 |
| 24mesh*24mesh | 0.26 | 0.8 | 304 or 316 |
| 30mesh*30mesh | 0.3 | 0.55 | 304 or 316 |
| 35mesh*35mesh | 0.17 | 0.56 | 304 or 316 |
| 40mesh*40mesh | 0.23 | 0.4 | 304 or 316 |
| 50mesh*50mesh | 0.2 | 0.31 | 304 or 316 |
| 60mesh*60mesh | 0.15 | 0.27 | 304 or 316 |
| 70mesh*70mesh | 0.12 | 0.24 | 304 or 316 |
| 80mesh*80mesh | 0.13 | 0.19 | 304 or 316 |
| 90mesh*90mesh | 0.1 | 0.16 | 304 or 316 |
| 100mesh*100mesh | 0.09 | 0.15 | 304 or 316 |
| 120mesh*120mesh | 0.063 | 0.12 | 304 or 316 |
| 150mesh*150mesh | 0.053 | 0.11 | 304 or 316 |
| 180mesh*180mesh | 0.053 | 0.09 | 304 or 316 |
| 200mesh*200mesh | 0.04 | 0.07 | 304 or 316 |
| 250mesh*250mesh | 0.04 | 0.063 | 316 |
| 300mesh*300mesh | 0.04 | 0.044 | 316 |
| 325mesh*325mesh | 0.035 | 0.043 | 316L |
| 350mesh*350mesh | 0.03 | 0.042 | 316L |
| 400mesh*400mesh | 0.03 | 0.33 | 316L |
| 450mesh*450mesh | 0.028 | 0.028 | 316L |
| 500mesh*500mesh | 0.025 | 0.026 | 316L |
